Magnetic Miniature Storage Tray (25mm, Gloomhaven)

for Gloomhaven (2017) Layer by Layer

notafish

Inserts Free

View on MakerWorld 165 179 Added Nov 5, 24 | Updated Aug 6, 26 Support notafish by Liking and Boosting their model.

Plan Your Print

About 107 g of filament From the designer's print profile

Print Profile (4) 0.2mm layer, 2 walls, 12% infill 3h 12m 107 g PLA

0.2mm layer, 2 walls, 12% infill

1 plate 3h 12m 107 g PLA

P1P, P1S, X1, X1 Carbon, X1E, A1, A1 mini, H2D, H2D Pro, H2S, P2S, H2C, X2D, A2L

Supports are not necessary, but a brim is advised to ensure the tray stays stuck to the bed properly. Amount of walls and infill is up to personal preference.

Plate Details (1)

0.4 mm nozzle, all plates

Plate 1

3h 12m 107 g PLA · 107 g

0.2mm layer, 2 walls, 15% infill, 8x2mm embedded magnets

1 plate 4h 23m 131 g PLA

A1, P1P, X1, X1 Carbon, H2D, X1E, P1S, A1 mini, H2D Pro, H2S, P2S, H2C, X2D, A2L

Includes PAUSE layer! Insert 8x2mm cylindrical magnets midprint! 0.4mm nozzle, 0.2mm layer height, For PLA Matte but (at least) Basic also works

Plate Details (1)

0.4 mm nozzle, all plates

Plate 1

4h 23m 131 g PLA · 131 g

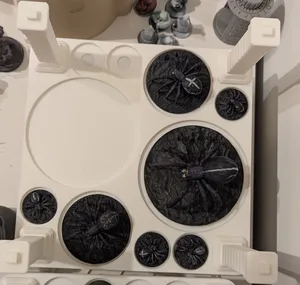

Tray for large creatures (up to 54mm diameter)

1 plate 3h 15m 108 g PLA

A1, H2S, X1 Carbon, P1S, H2D, A1 mini, X1E, H2D Pro, P1P, X1, P2S, H2C, X2D, A2L

Adapted for fitting large creatures with up to 54mm bases. Slots for 7 large creatures as well as 4 medium sized creatures. Increased hight by one pillar element as well.

Plate Details (1)

0.4 mm nozzle, all plates

Plate 1

3h 15m 108 g PLA · 108 g

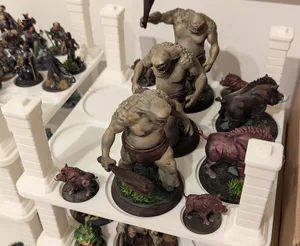

Tray for huge creatures (up to 84mm diameter)

1 plate 3h 25m 112 g PLA

A1, P1S, X1 Carbon, H2S, H2D Pro, X1, X1E, H2D, A1 mini, P1P, P2S, H2C, X2D, A2L

Adapted for fitting huge creatures with up to 84mm bases. Slots for 2 huge creatures, 2 large creatures as well as 6 medium sized creatures. Increased hight by three pillar elements as well.

Plate Details (1)

0.4 mm nozzle, all plates

Plate 1

3h 25m 112 g PLA · 112 g

As sliced by the designer. Your printer, filament, and settings may change these numbers.

Designer's Description

A couple years ago when I started playing Gloomhaven with a group of friends I needed a solid way to store all the 3D printed miniatures. Even though there were many different systems for bases/standees and miniatures around, I decided to create something myself.

As we've recently purchased Frosthaven and are gearing up to start playing it, I printed even more and thought I'd share them with the world.

It's a system using simple square trays and bases using magnets to make it easy to store, and attach standee markers to the bases.

The 25 mm bases have numbers on them, ranging from 1 to 10 and an unnumbered one for bosses. The bases have a slot underneath for small 10x1 mm magnets. The legends on the sides are very small and therefor I printed them in resin, you can always print the unnumbered base in FDM and paint the number on.

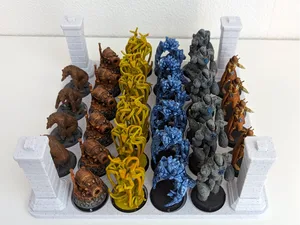

Each tray holds 32 miniatures and each slot on the tray has a space for either 10x1 mm magnets, or 10x1 mm metal discs (metal discs are a heck of a lot cheaper than magnets). I used D10x1mm N35 Round Neodymium magnets in the bases and D10x1mm round metal discs in the storage trays and standee markers.

The trays are stackable allowing you to easily store and transport all your minis. The trays are compatible with the storage boxes I made for Gloomhaven and Frosthaven terrain.

To house all the miniatures for Gloomhaven 7 trays are needed and for Frosthaven you need another 6 trays.

The standee markers have the same slot for a metal disc or magnet and in Gloomhaven these are used to signify regular (white) or elite (gold) enemies (and in Frosthaven also summons [blue] and bosses [red]).

For each tray you will need:
Amount Item I bought
32 D10x1 round magnet Neodymium magnetic disc N35 D10 x 1 mm
32 D10x1 round metallic disc Metal Disc D10 x 1 mm

Edits

08-2025: Thanks to https://makerworld.com/en/@Artovah for adding a profile with embedded magnets using a pause action
10-2025: Many thanks to https://makerworld.com/en/@feuervogelvii for adding profiles with support for 54 and 84mm bases!
