Magnetic Flip Case - Auto-Open Lid

Storage & Containers Free

View on MakerWorld 1,372 1,133 Added Aug 3, 25 | Updated Sep 1, 26 Support oliverdias by Liking and Boosting their model.

Plan Your Print

About 62 g of filament From the designer's print profile

Print Profile (5) 0.16mm layer, 3 walls, 15% infill 1h 56m 62 g PLA

0.16mm layer, 3 walls, 15% infill

1 plate 1h 56m 62 g PLA

P1S, P1P, X1, X1 Carbon, X1E

• 0.16mm layer height • 3 walls • 15% infill • lever oriented 45% for more strength

Plate Details (1)

0.4 mm nozzle, all plates

Plate 1

1h 56m 62 g PLA · 59 g PLA · 3 g

A1/A1 mini/H2D print by layer

1 plate 4h 25m 98 g PLA

P1S, A1 mini, A1, H2D, H2D Pro, H2S, P2S, H2C, X2D, A2L

• 0.16mm layer height • print by layer • 3 walls • 15% infill • lever oriented 45% for more strength

Plate Details (1)

0.4 mm nozzle, all plates

Plate 1

4h 25m 98 g PLA · 75 g PLA · 23 g

110mm internal height - 6x3 Magnets

1 plate 2h 24m 81 g PLA

P1S, P1P, X1, X1 Carbon, X1E

• 110mm internal height • Magnets 6x3 • 0.16mm layer height • print sequence by object • 3 walls

Plate Details (1)

0.4 mm nozzle, all plates

Plate 1

2h 24m 81 g PLA · 78 g PLA · 3 g

6x3mm Magnet Version

2 plates 3h 59m 120 g PLA

X1 Carbon, P1S, P1P, X1, X1E

I had some 6x3mm magnets laying around but loved this design. This print profile has been optimized to use 6mm diameter magnets instead of 5mm. 0.16 Layer Height 3 Walls No Supports 15% Infill

Plate Details (2)

0.4 mm nozzle, all plates

Plate 1 · Standard 5mm Magnet Variation

2h 60 g PLA · 57 g PLA · 3 g

Plate 2 · 6mm Magnet Variation

1h 59m 60 g PLA · 57 g PLA · 3 g

0.16mm layer, 3 walls, 15% infill H2D

1 plate 2h 53m 62 g ABS

H2D

Plate Details (1)

0.4 mm nozzle, all plates

Plate 1

2h 53m 62 g ABS · 60 g ABS · 2 g

As sliced by the designer. Your printer, filament, and settings may change these numbers.

Designer's Description

Version 2 with push to open feature now available - GO TO VERSION 2

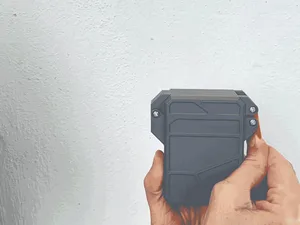

This is a sci-fi-inspired, rugged, modern case with a slick magnetic flip-open trick built in. It’s great for holding small stuff and even better for showing off what you can do with magnets.

The real magic is in the mechanism: when you insert 4x 5×3mm magnets in the back with opposing polarity (so make sure to insert them the right was), the case pops open automatically when you pull the lever. It's super satisfying to watch and honestly kind fun to play with. If you're not into that feature, you can totally skip the magnets and use it as a regular case.

You’ll need 3x M3x20mm screws for the hinge. The lever’s designed to be tight at first but loosens up nicely after a few uses.

I printed mine in PLA Matte with 0.16mm Layer height for a clean finish, and I oriented the lever at 45° for extra strength along the layer lines.

If you're into cool prints, magnetic mechanisms, or just want a case that feels like it belongs in a sci-fi movie, give this one a shot. Have fun with it!

My Latest Take on This Design

Like magnetic mechanisms? Then you might enjoy this design 😊

magnetic magnets flip futuristic rugged case lever screws m3 modern
