Architects of the West Kingdom Magnetic Organizer

for Architects of the West Kingdom (2018) Layer by Layer

QHC

Inserts Free

View on MakerWorld 6 19 Added Jul 21, 25 | Updated Sep 3, 26 Support QHC by Liking and Boosting their model.

Plan Your Print

About 313 g of filament From the designer's print profile

Print Profile 11h 42m 313 g PLA

What it takes

11 plates 11h 42m 313 g PLA

A1, X1 Carbon, H2D, X1E, A1 mini, P1P, X1, P1S, H2D Pro, H2S, P2S, H2C, X2D, A2L

Plate Details (11)

0.4 mm nozzle, all plates

Plate 1 · Big Cards - Reference

50m 22 g PLA · 2 g PLA · 20 g

Plate 2 · Big Cards - Apprentices

1h 27m 39 g PLA · 37 g PLA · 2 g

Plate 3 · Big Cards - Buildings

1h 26m 39 g PLA · 37 g PLA · 2 g

Plate 4 · Resources Quad x2

1h 45m 51 g PLA · 47 g PLA · 4 g

Plate 5 · Resources Dual x2

1h 1m 31 g PLA · 28 g PLA · 3 g

Plate 6 · Small Cards - Debt

52m 20 g PLA · 18 g PLA · 2 g

Plate 7 · Small Decks - Black Market and Reward

1h 17m 30 g PLA · 1 g PLA · 2 g PLA · 27 g

Plate 8 · Small Cards - Multiplier

35m 11 g PLA · 10 g PLA · 1 g

Plate 9 · Player Trays x5

1h 3m 34 g PLA · 34 g

Plate 10

43m 18 g PLA · 1 g PLA · 17 g

Plate 11

45m 18 g PLA · 18 g

Designer's Description

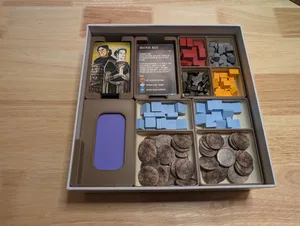

Storage solution for the board game Architects of the West Kingdom (see BGG page for more info) .

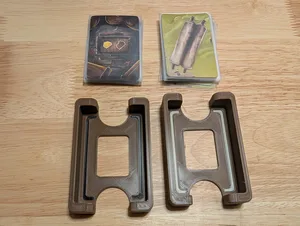

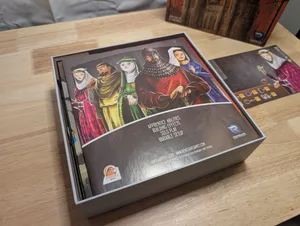

All of my inserts are designed with both storage and on-the-table experience in mind, so almost everything can be pulled right out of the box and ready for play. Some of the card decks require extra setup but after, the trays for each can go to their typical locations around the board. Only exception is the Corner Topper that goes above the player boxes and keeps the boards in place.

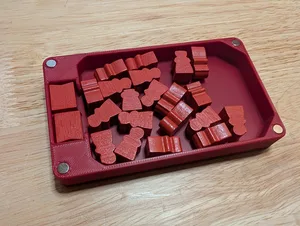

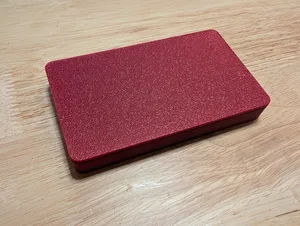

You will need 12 magnets (5x2mm) for each player box, and a total of 64 including the corner topper. The reason there's so many magnets needed is so the lids can flip around and store below each tray, as well as allowing them all to stack vertically without magnetic interference. Be careful when inserting magnets to make sure they are oriented correctly! If you have a magnet jig (for example ) treat the lid and bottom of the player tray as “top” and only treat the top of the player tray as “bottom”.
