# Dahan — Spirit Island tribal hut token

Replacement tokens for the **dahan** (Pacific-Islander villagers) in

[Spirit Island](https://boardgamegeek.com/boardgame/162886/spirit-island).

Stylised as miniature tribal huts so each one reads at a glance as a

village, not a wooden cube.

Generated in Meshy from a DALL·E reference (chibi Pacific-Islander

tribal hut with conical thatched roof + woven body + low-relief door),

then sliced into a roof half and a body half for 2-colour printing on

a Bambu AMS.

- **`dahan_combined.stl`** (~27 MB) — 2 named solids (`dahan_roof` +

`dahan_body`) in one ASCII STL. Bambu workflow: **Import →

right-click → Split to Parts** → assign one filament per part.

Coordinates locked, no manual alignment.

- **`dahan_body.stl`** (~1.9 MB) — woven body half only, binary STL.

Use this for a single-colour print, or for AMS users who want to

assign filaments per-file instead of via Split-to-Parts.

- **`dahan_roof.stl`** (~2.9 MB) — conical thatched roof half only,

binary STL. Mates with the body at z = 8.25 mm.

- Overall: **Ø22 mm × 20 mm tall**

- Roof / body seam at z ≈ 8.25 mm (vertex-histogram peak — the eave

where roof meets wall)

- Each hut: ~6 g PLA at standard settings

- **Orientation:** flat on bed — the token sits upright with the

body's flat bottom on the build plate.

- **Supports:** none.

- **Layers:** 0.2 mm.

- **Walls:** 3.

- **Infill:** 15 %.

- **Filament:** ~6 g per hut.

- **Print time:** ~25 min per hut.

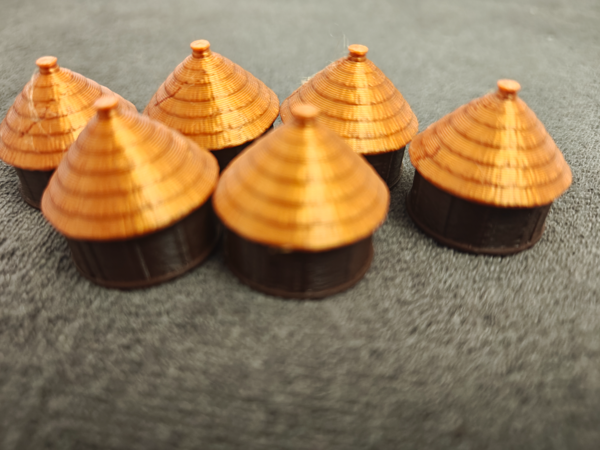

The bundle ships 6 huts on the print bed (one for every dahan slot on

the standard Spirit Island board / per-spirit setup). Tile them in

Bambu Studio if you want fewer / more.

1. **Import** `dahan_combined.stl`.

2. Right-click the model → **Split to Parts**. You will see two parts

named `dahan_roof` and `dahan_body`.

3. Assign filament 1 (e.g. **thatch tan**) to `dahan_roof`,

filament 2 (e.g. **wall brown**) to `dahan_body`.

4. Slice + print.

The seam at z = 8.25 mm is the natural eave line — the colour change

lands exactly where the wall meets the overhang of the roof, so it

reads as architecture, not as a slicer artefact.

- **No AMS?** Print `dahan_body.stl` and `dahan_roof.stl` separately,

then glue them at the seam. Or just print the body for a

silhouette-only token.

- **Single-colour MMU users:** drop `dahan_combined.stl` in as a

multi-material model directly without Split-to-Parts.

- **Backup:** the combined ASCII is ~5× larger than the binary halves

— if your slicer balks at the size, the halves are the same mesh in

a leaner format.

- Designed for Spirit Island (any edition).

- The token's footprint fits the dahan slots on the board with margin

to spare; multiple huts cluster cleanly inside a single land.

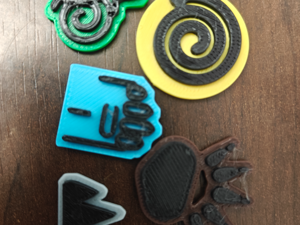

- Pairs nicely with my other Spirit Island prints (beast / fist / paw

/ mountain / wilds tokens + energy_counter + colonizer) — all in the

same chibi visual language.

1. **DALL·E** for a flat reference image of a chibi tribal hut.

2. **Meshy** image-to-3D, sculpting the figurine to ~100 MB raw STL.

3. **trimesh** to repair the mesh (manifold), find the eave seam via

vertex z-histogram, and `intersections.slice_mesh_plane(cap=True)`

to split into roof + body halves.

4. **Quadric decimation** on each half to ship-friendly poly counts.

5. **sed** to rename each half's `solid` header (`solid dahan_roof` /

`solid dahan_body`) and concatenate the two ASCII files into the

final combined STL. Coordinates preserved exactly.

The raw 100 MB Meshy STL is gitignored; the decimated halves +

combined ASCII are what ships here.
