dominoes · standard and mini
Miniatures
Free
Plan Your Print
Sign in
to track this print from Want to Printed.
About 365 g of filament
From the designer's print profile
Print Profile (3) x1c · standard 12h 46m 365 g PLA
x1c · standard
3 plates
12h 46m
365 g PLA
X1 Carbon, P1S, P1P, X1, X1E, A1, H2D, H2D Pro, H2S, P2S, H2C, X2D, A2L
• .40mm nozzle
• .16 layer heigh
• scarf joint seam
• arachne walls
• 15% cross hatch infill
Plate Details (3)
0.4 mm nozzle, all plates
Plate 1 · dominoes · standard
5h 21m
123 g
PLA · 123 g
Plate 2 · box · standard
2h 53m
109 g
PLA · 109 g
Plate 3 · stand · standard
4h 32m
133 g
PLA · 133 g
x1c · mini
3 plates
8h 12m
159 g PLA
X1 Carbon, P1S, P1P, X1, X1E, A1, A1 mini, H2D, H2D Pro, H2S, P2S, H2C, X2D, A2L
• .40mm nozzle
• .16 layer heigh
• scarf joint seam
• arachne walls
• 15% cross hatch infill
Plate Details (3)
0.4 mm nozzle, all plates
Plate 1 · dominoes · mini
2h 53m
45 g
PLA · 45 g
Plate 2 · box · mini
1h 42m
48 g
PLA · 48 g
Plate 3 · stand · mini
3h 37m
66 g
PLA · 66 g
AMS version (2 colors), Standard size, minimal waste (<1%)
1 plate
7h 25m
131 g PLA
P2S, H2S, X2D, X1, P1S, H2D, X1 Carbon, X1E, H2C, P1P, A1, H2D Pro, A2L
This print profile includes colored version of standard dominoes. Coloring was made quite optimal, thus you have only 6 color changes and 3.36g of waste out of 130g total.
Bottom side is the same color as dots to ensure they can't be looked through.
Important setting differences:
• Top paint penetration layers 3
• Bottom paint penetration layers 3
Scale with caution, as paint layers were set with accordance to existing scale.
Plate Details (1)
0.4 mm nozzle, all plates
Plate 1 · dominoes · standard
7h 25m
131 g
PLA · 109 g
PLA · 22 g
As sliced by the designer. Your printer, filament, and settings may change these numbers.
Designer's Description

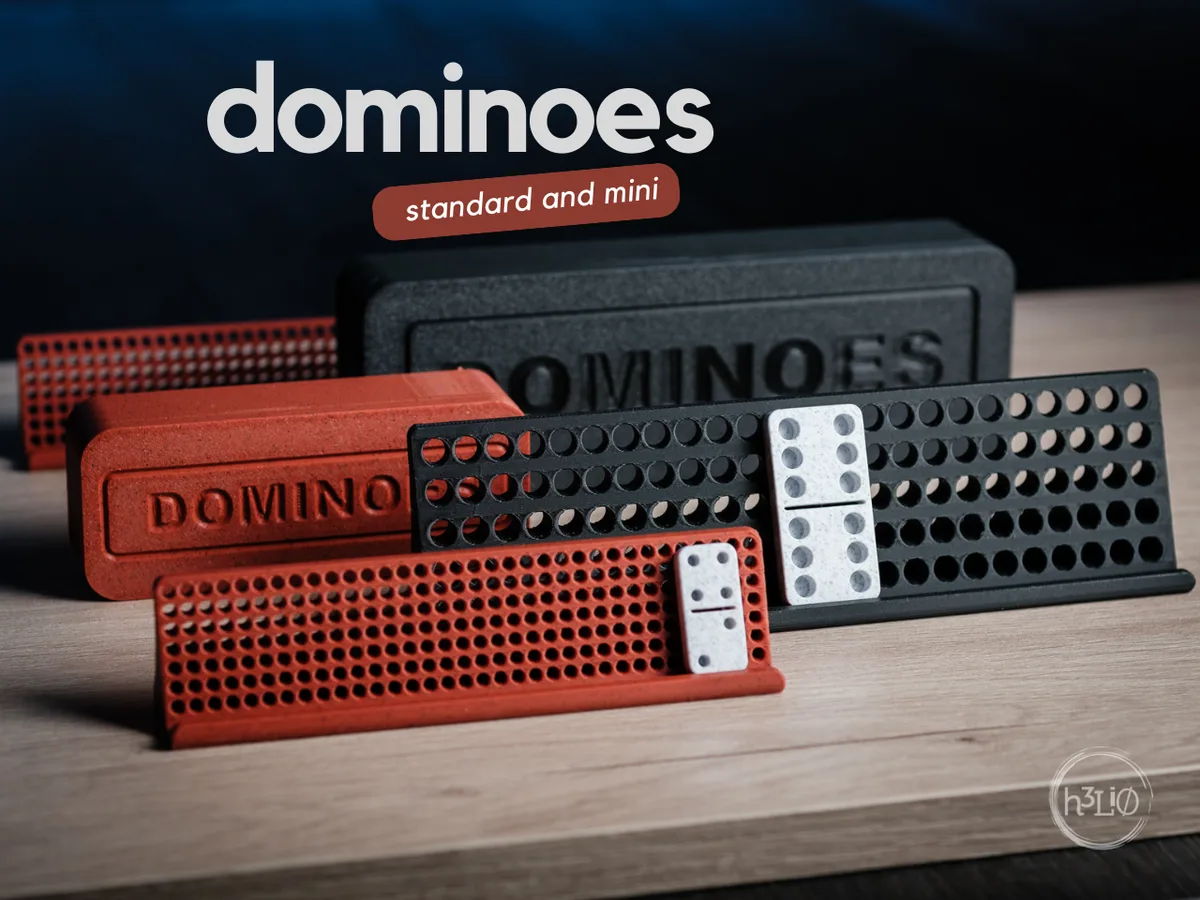

dominoes · standard and mini
modern minimalist dominoes board game, with standard and mini sizes available
pieces dimensions in mm:
- standard ~ x: 48 · y: 24 · z: 6
- mini ~ x: 30 · y: 14 · z: 5
includes case and stands for pieces
You'll need 8 4x2mm magnets for the case, to achieve the same result as shown in the pictures, as well as some drops of super glue to ensure they really stay in their position and don't get pulled away from the slot.
please make sure that you are very mindful of the polarities of the magnet when assembling and gluing in their spots as you want to make sure that each section attracts and not repels the one that will sit above/below
photos show printed in marble white, marble brick and matte black pla
- .40mm nozzle
- .16 layer heigh
- scarf joint seam
- arachne walls
- 15% cross hatch infill
notes
- includes bambu studio 3mf files and STLs in folders (standard and mini)
- all photos uploaded are of the actual printed model , and are copyright protected
- if you enjoy this model please consider to
- commercial licence membership available on my
