Spirit Island Energy Counter (0-20 Dial)

A small rotating dial that tracks Spirit Island energy (0..20) through

a window under a cap embossed with the **eight Spirit Island element

glyphs**: sun, moon, fire, air, water, earth, plant, animal. One per

player for fast, fiddly-counter-free play.

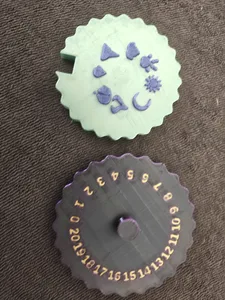

Two physical pieces that snap together once and stay :

• Base — wavy disc with a central post. Numbers 0..20 sit flush-inlaid
• on the top face in contrast colour around the rim.
• 2. Cap — smaller wavy disc with a hole down the middle and a window cut
• through the rim. The eight element icons sit on top as raised relief.

The post has a 0.4 mm ring ridge; the cap's bore has a matching pocket

above a narrower body with four vertical slits that flex past the ridge

on first install, then trap it. The cap spins freely but can't lift off.

To read the current value: hold the cap steady, twist the base. The

base's wavy rim sticks out below the cap so each disc has its own

independent finger-grip surface. The active digit shows through the

window.

• Filament A (body) — base body + cap body
• - Filament B (accent) — base numbers + cap glyphs

Import all four STLs; they share an origin so they line up. Assign

filament A to the two body parts and filament B to the numbers and

glyphs. No supports — every overhang is ≤ 45°.

• Flat on the bed, 0.2 mm layer, 2-3 walls, 15% infill.
• - PLA or PETG; tested on Bambu P2S with PLA Basic.
• - Assembly — press the cap straight down onto the post. Firm push,
• faint click as the four petals settle into the pocket. Done. No glue.
• - If the cap rotates too tight after snap-in, ream the bore body (not the
• pocket) by 0.1 mm. If it rattles, one wrap of PTFE tape on the post.

Fan content for Spirit Island — not affiliated with Greater Than Games.
